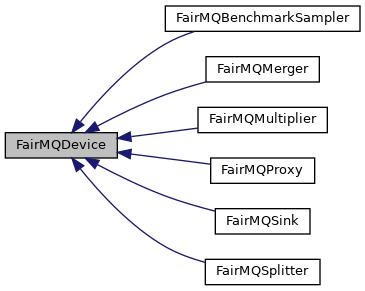

Inheritance diagram for FairMQDevice:

[legend]

Collaboration diagram for FairMQDevice:

Public Member Functions
	FairMQDevice ()
	Default constructor.

	FairMQDevice (fair::mq::ProgOptions &config)
	Constructor with external fair::mq::ProgOptions.

	FairMQDevice (const fair::mq::tools::Version version)
	Constructor that sets the version.

	FairMQDevice (fair::mq::ProgOptions &config, const fair::mq::tools::Version version)
	Constructor that sets the version and external fair::mq::ProgOptions.

	FairMQDevice (const FairMQDevice &)=delete
	Copy constructor (disabled)

FairMQDevice	operator= (const FairMQDevice &)=delete
	Assignment operator (disabled)

virtual	~FairMQDevice ()
	Default destructor.

virtual void	LogSocketRates ()
	Outputs the socket transfer rates.

template<typename Serializer , typename DataType , typename... Args>
void	Serialize (FairMQMessage &msg, DataType &&data, Args &&... args) const

template<typename Deserializer , typename DataType , typename... Args>
void	Deserialize (FairMQMessage &msg, DataType &&data, Args &&... args) const

int64_t	Send (FairMQMessagePtr &msg, const std::string &channel, const int index=0, int sndTimeoutInMs=-1)

int64_t	Receive (FairMQMessagePtr &msg, const std::string &channel, const int index=0, int rcvTimeoutInMs=-1)

int64_t	Send (FairMQParts &parts, const std::string &channel, const int index=0, int sndTimeoutInMs=-1)

int64_t	Receive (FairMQParts &parts, const std::string &channel, const int index=0, int rcvTimeoutInMs=-1)

auto	Transport () const -> FairMQTransportFactory *
	Getter for default transport factory.

template<typename... Args>
FairMQMessagePtr	NewMessage (Args &&... args)

template<typename... Args>
FairMQMessagePtr	NewMessageFor (const std::string &channel, int index, Args &&... args)

template<typename T >
FairMQMessagePtr	NewStaticMessage (const T &data)

template<typename T >
FairMQMessagePtr	NewStaticMessageFor (const std::string &channel, int index, const T &data)

template<typename T >
FairMQMessagePtr	NewSimpleMessage (const T &data)

template<typename T >
FairMQMessagePtr	NewSimpleMessageFor (const std::string &channel, int index, const T &data)

template<typename... Args>
FairMQUnmanagedRegionPtr	NewUnmanagedRegion (Args &&... args)

template<typename... Args>
FairMQUnmanagedRegionPtr	NewUnmanagedRegionFor (const std::string &channel, int index, Args &&... args)

template<typename ... Ts>
FairMQPollerPtr	NewPoller (const Ts &... inputs)

FairMQPollerPtr	NewPoller (const std::vector< FairMQChannel * > &channels)

std::shared_ptr< FairMQTransportFactory >	AddTransport (const fair::mq::Transport transport)

void	SetConfig (fair::mq::ProgOptions &config)
	Assigns config to the device.

fair::mq::ProgOptions *	GetConfig () const
	Get pointer to the config.

template<typename T >
void	OnData (const std::string &channelName, bool(T::*memberFunction)(FairMQMessagePtr &msg, int index))

void	OnData (const std::string &channelName, InputMsgCallback callback)

template<typename T >
void	OnData (const std::string &channelName, bool(T::*memberFunction)(FairMQParts &parts, int index))

void	OnData (const std::string &channelName, InputMultipartCallback callback)

FairMQChannel &	GetChannel (const std::string &channelName, const int index=0)

virtual void	RegisterChannelEndpoints ()

bool	RegisterChannelEndpoint (const std::string &channelName, uint16_t minNumSubChannels=1, uint16_t maxNumSubChannels=1)

void	PrintRegisteredChannels ()

void	SetId (const std::string &id)

std::string	GetId ()

const fair::mq::tools::Version	GetVersion () const

void	SetNumIoThreads (int numIoThreads)

int	GetNumIoThreads () const

void	SetNetworkInterface (const std::string &networkInterface)

std::string	GetNetworkInterface () const

void	SetDefaultTransport (const std::string &name)

std::string	GetDefaultTransport () const

void	SetInitTimeoutInS (int initTimeoutInS)

int	GetInitTimeoutInS () const

void	SetTransport (const std::string &transport)

std::string	GetTransportName () const
	Gets the default transport name.

void	SetRawCmdLineArgs (const std::vector< std::string > &args)

std::vector< std::string >	GetRawCmdLineArgs () const

void	RunStateMachine ()

template<typename Rep , typename Period >
bool	WaitFor (std::chrono::duration< Rep, Period > const &duration)

void	AddChannel (const std::string &name, FairMQChannel &&channel)

bool	ChangeState (const fair::mq::Transition transition)
	Request a device state transition. More...

bool	ChangeState (const std::string &transition)
	Request a device state transition. More...

fair::mq::State	WaitForNextState ()
	waits for the next state (any) to occur

void	WaitForState (fair::mq::State state)
	waits for the specified state to occur More...

void	WaitForState (const std::string &state)
	waits for the specified state to occur More...

void	TransitionTo (const fair::mq::State state)

void	SubscribeToStateChange (const std::string &key, std::function< void(const fair::mq::State)> callback)
	Subscribe with a callback to state changes. More...

void	UnsubscribeFromStateChange (const std::string &key)
	Unsubscribe from state changes. More...

void	SubscribeToNewTransition (const std::string &key, std::function< void(const fair::mq::Transition)> callback)
	Subscribe with a callback to incoming state transitions. More...

void	UnsubscribeFromNewTransition (const std::string &key)
	Unsubscribe from state transitions. More...

bool	NewStatePending () const
	Returns true if a new state has been requested, signaling the current handler to stop.

fair::mq::State	GetCurrentState () const
	Returns the current state.

std::string	GetCurrentStateName () const
	Returns the name of the current state as a string.

Static Public Member Functions
static std::string	GetStateName (const fair::mq::State state)
	Returns name of the given state as a string. More...

static std::string	GetTransitionName (const fair::mq::Transition transition)
	Returns name of the given transition as a string. More...

Public Attributes
std::unordered_map< std::string, std::vector< FairMQChannel > >	fChannels
	Device channels.

std::unique_ptr< fair::mq::ProgOptions >	fInternalConfig
	Internal program options configuration.

fair::mq::ProgOptions *	fConfig
	Pointer to config (internal or external)

Static Public Attributes
static constexpr const char *	DefaultId = ""

static constexpr int	DefaultIOThreads = 1

static constexpr const char *	DefaultTransportName = "zeromq"

static constexpr fair::mq::Transport	DefaultTransportType = fair::mq::Transport::ZMQ

static constexpr const char *	DefaultNetworkInterface = "default"

static constexpr int	DefaultInitTimeout = 120

static constexpr uint64_t	DefaultMaxRunTime = 0

static constexpr float	DefaultRate = 0.

static constexpr const char *	DefaultSession = "default"

Protected Member Functions
virtual void	Init ()
	Additional user initialization (can be overloaded in child classes). Prefer to use InitTask().

virtual void	Bind ()

virtual void	Connect ()

virtual void	InitTask ()
	Task initialization (can be overloaded in child classes)

virtual void	Run ()
	Runs the device (to be overloaded in child classes)

virtual void	PreRun ()
	Called in the RUNNING state once before executing the Run()/ConditionalRun() method.

virtual bool	ConditionalRun ()
	Called during RUNNING state repeatedly until it returns false or device state changes.

virtual void	PostRun ()
	Called in the RUNNING state once after executing the Run()/ConditionalRun() method.

virtual void	ResetTask ()
	Resets the user task (to be overloaded in child classes)

virtual void	Reset ()
	Resets the device (can be overloaded in child classes)

Protected Attributes
std::shared_ptr< FairMQTransportFactory >	fTransportFactory
	Default transport factory.

std::unordered_map< fair::mq::Transport, std::shared_ptr< FairMQTransportFactory > >	fTransports
	Container for transports.

std::string	fId
	Device ID.

Friends
class	FairMQChannel

Member Function Documentation

◆ AddTransport()

shared_ptr< FairMQTransportFactory > FairMQDevice::AddTransport ( const fair::mq::Transport transport )

Adds a transport to the device if it doesn't exist

Parameters

transport Transport string ("zeromq"/"shmem")

◆ ChangeState() [1/2]

bool FairMQDevice::ChangeState ( const fair::mq::Transition transition )

inline

Request a device state transition.

Parameters

transition state transition

The state transition may not happen immediately, but when the current state evaluates the pending transition event and terminates. In other words, the device states are scheduled cooperatively.

◆ ChangeState() [2/2]

bool FairMQDevice::ChangeState ( const std::string & transition )

inline

Request a device state transition.

Parameters

transition state transition

The state transition may not happen immediately, but when the current state evaluates the pending transition event and terminates. In other words, the device states are scheduled cooperatively.

◆ GetStateName()

static std::string FairMQDevice::GetStateName ( const fair::mq::State state )

inlinestatic

Returns name of the given state as a string.

Parameters

state state

◆ GetTransitionName()

static std::string FairMQDevice::GetTransitionName ( const fair::mq::Transition transition )

inlinestatic

Returns name of the given transition as a string.

Parameters

transition transition

◆ Receive() [1/2]

int64_t FairMQDevice::Receive	(	FairMQMessagePtr &	msg,
		const std::string &	channel,
		const int	index = `0`,
		int	rcvTimeoutInMs = `-1`
	)

inline

Shorthand method to receive msg on chan at index i

Parameters

msg	message reference
chan	channel name
i	channel index
rcvTimeoutInMs	receive timeout in ms, -1 will wait forever (or until interrupt (e.g. via state change)), 0 will not wait (return immediately if cannot receive)

Returns: Number of bytes that have been received, TransferCode::timeout if timed out, TransferCode::error if there was an error, TransferCode::interrupted if interrupted (e.g. by requested state change)

◆ Receive() [2/2]

int64_t FairMQDevice::Receive	(	FairMQParts &	parts,
		const std::string &	channel,
		const int	index = `0`,
		int	rcvTimeoutInMs = `-1`
	)

inline

Shorthand method to receive FairMQParts on chan at index i

Parameters

parts	parts reference
chan	channel name
i	channel index
rcvTimeoutInMs	receive timeout in ms, -1 will wait forever (or until interrupt (e.g. via state change)), 0 will not wait (return immediately if cannot receive)

Returns: Number of bytes that have been received, TransferCode::timeout if timed out, TransferCode::error if there was an error, TransferCode::interrupted if interrupted (e.g. by requested state change)

◆ Send() [1/2]

int64_t FairMQDevice::Send	(	FairMQMessagePtr &	msg,
		const std::string &	channel,
		const int	index = `0`,
		int	sndTimeoutInMs = `-1`
	)

inline

Shorthand method to send msg on chan at index i

Parameters

msg	message reference
chan	channel name
i	channel index
sndTimeoutInMs	send timeout in ms, -1 will wait forever (or until interrupt (e.g. via state change)), 0 will not wait (return immediately if cannot send)

Returns: Number of bytes that have been queued, TransferCode::timeout if timed out, TransferCode::error if there was an error, TransferCode::interrupted if interrupted (e.g. by requested state change)

◆ Send() [2/2]

int64_t FairMQDevice::Send	(	FairMQParts &	parts,
		const std::string &	channel,
		const int	index = `0`,
		int	sndTimeoutInMs = `-1`
	)

inline

Shorthand method to send FairMQParts on chan at index i

Parameters

parts	parts reference
chan	channel name
i	channel index
sndTimeoutInMs	send timeout in ms, -1 will wait forever (or until interrupt (e.g. via state change)), 0 will not wait (return immediately if cannot send)

Returns: Number of bytes that have been queued, TransferCode::timeout if timed out, TransferCode::error if there was an error, TransferCode::interrupted if interrupted (e.g. by requested state change)

◆ SetTransport()

void FairMQDevice::SetTransport ( const std::string & transport )

inline

Sets the default transport for the device

Parameters

transport Transport string ("zeromq"/"shmem")

◆ SubscribeToNewTransition()

void FairMQDevice::SubscribeToNewTransition	(	const std::string &	key,
		std::function< void(const fair::mq::Transition)>	callback
	)

inline

Subscribe with a callback to incoming state transitions.

Parameters

key	id to identify your subscription
callback	callback (called with the incoming transition as the parameter) The callback is called when new transition is initiated. The callback is called from the thread that initiates the transition (via ChangeState).

◆ SubscribeToStateChange()

void FairMQDevice::SubscribeToStateChange	(	const std::string &	key,
		std::function< void(const fair::mq::State)>	callback
	)

inline

Subscribe with a callback to state changes.

Parameters

key	id to identify your subscription
callback	callback (called with the new state as the parameter)

The callback is called at the beginning of a new state. The callback is called from the thread the state is running in.

◆ UnsubscribeFromNewTransition()

void FairMQDevice::UnsubscribeFromNewTransition ( const std::string & key )

inline

Unsubscribe from state transitions.

Parameters

key	id (that was used when subscribing)

◆ UnsubscribeFromStateChange()

void FairMQDevice::UnsubscribeFromStateChange ( const std::string & key )

inline

Unsubscribe from state changes.

Parameters

key	id (that was used when subscribing)

◆ WaitFor()

template<typename Rep , typename Period >

bool FairMQDevice::WaitFor ( std::chrono::duration< Rep, Period > const & duration )

inline

Wait for the supplied amount of time or for interruption. If interrupted, returns false, otherwise true.

Parameters

duration wait duration

◆ WaitForState() [1/2]

void FairMQDevice::WaitForState ( const std::string & state )

inline

waits for the specified state to occur

Parameters

state state to wait for

◆ WaitForState() [2/2]

void FairMQDevice::WaitForState ( fair::mq::State state )

inline

waits for the specified state to occur

Parameters

state state to wait for

The documentation for this class was generated from the following files:

fairmq/FairMQDevice.h
fairmq/FairMQDevice.cxx

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Protected Attributes

Friends

Member Function Documentation

◆ AddTransport()

◆ ChangeState() [1/2]

◆ ChangeState() [2/2]

◆ GetStateName()

◆ GetTransitionName()

◆ Receive() [1/2]

◆ Receive() [2/2]

◆ Send() [1/2]

◆ Send() [2/2]

◆ SetTransport()

◆ SubscribeToNewTransition()

◆ SubscribeToStateChange()

◆ UnsubscribeFromNewTransition()

◆ UnsubscribeFromStateChange()

◆ WaitFor()

◆ WaitForState() [1/2]

◆ WaitForState() [2/2]
