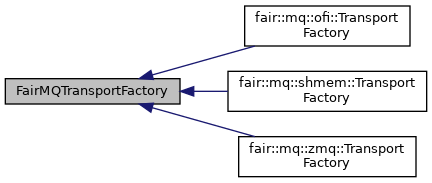

Inheritance diagram for FairMQTransportFactory:

[legend]

Public Member Functions
	FairMQTransportFactory (const std::string &id)

auto	GetId () const -> const std::string

fair::mq::ChannelResource *	GetMemoryResource ()
	Get a pointer to the associated polymorphic memory resource.

	operator fair::mq::ChannelResource * ()

virtual FairMQMessagePtr	CreateMessage ()=0
	Create empty FairMQMessage (for receiving) More...

virtual FairMQMessagePtr	CreateMessage (fair::mq::Alignment alignment)=0
	Create empty FairMQMessage (for receiving), align received buffer to specified alignment. More...

virtual FairMQMessagePtr	CreateMessage (const size_t size)=0
	Create new FairMQMessage of specified size. More...

virtual FairMQMessagePtr	CreateMessage (const size_t size, fair::mq::Alignment alignment)=0
	Create new FairMQMessage of specified size and alignment. More...

virtual FairMQMessagePtr	CreateMessage (void data, const size_t size, fairmq_free_fn ffn, void *hint=nullptr)=0
	Create new FairMQMessage with user provided buffer and size. More...

virtual FairMQMessagePtr	CreateMessage (FairMQUnmanagedRegionPtr &unmanagedRegion, void data, const size_t size, void hint=0)=0
	create a message with the buffer located within the corresponding unmanaged region More...

virtual FairMQSocketPtr	CreateSocket (const std::string &type, const std::string &name)=0
	Create a socket.

virtual FairMQPollerPtr	CreatePoller (const std::vector< FairMQChannel > &channels) const =0
	Create a poller for a single channel (all subchannels)

virtual FairMQPollerPtr	CreatePoller (const std::vector< FairMQChannel * > &channels) const =0
	Create a poller for specific channels.

virtual FairMQPollerPtr	CreatePoller (const std::unordered_map< std::string, std::vector< FairMQChannel >> &channelsMap, const std::vector< std::string > &channelList) const =0
	Create a poller for specific channels (all subchannels)

virtual FairMQUnmanagedRegionPtr	CreateUnmanagedRegion (const size_t size, FairMQRegionCallback callback=nullptr, const std::string &path="", int flags=0)=0
	Create new UnmanagedRegion. More...

virtual FairMQUnmanagedRegionPtr	CreateUnmanagedRegion (const size_t size, FairMQRegionBulkCallback callback=nullptr, const std::string &path="", int flags=0)=0

virtual FairMQUnmanagedRegionPtr	CreateUnmanagedRegion (const size_t size, const int64_t userFlags, FairMQRegionCallback callback=nullptr, const std::string &path="", int flags=0)=0
	Create new UnmanagedRegion. More...

virtual FairMQUnmanagedRegionPtr	CreateUnmanagedRegion (const size_t size, const int64_t userFlags, FairMQRegionBulkCallback callback=nullptr, const std::string &path="", int flags=0)=0

virtual void	SubscribeToRegionEvents (FairMQRegionEventCallback callback)=0
	Subscribe to region events (creation, destruction, ...) More...

virtual bool	SubscribedToRegionEvents ()=0
	Check if there is an active subscription to region events. More...

virtual void	UnsubscribeFromRegionEvents ()=0
	Unsubscribe from region events.

virtual std::vector< FairMQRegionInfo >	GetRegionInfo ()=0

virtual fair::mq::Transport	GetType () const =0
	Get transport type.

virtual void	Interrupt ()=0

virtual void	Resume ()=0

virtual void	Reset ()=0

template<typename T >
FairMQMessagePtr	NewSimpleMessage (const T &data)

template<std::size_t N>
FairMQMessagePtr	NewSimpleMessage (const char(&data)[N])

FairMQMessagePtr	NewSimpleMessage (const std::string &str)

template<typename T >
FairMQMessagePtr	NewStaticMessage (const T &data)

FairMQMessagePtr	NewStaticMessage (const std::string &str)

Static Public Member Functions
static auto	CreateTransportFactory (const std::string &type, const std::string &id="", const fair::mq::ProgOptions *config=nullptr) -> std::shared_ptr< FairMQTransportFactory >

static void	FairMQNoCleanup (void , void )

template<typename T >
static void	FairMQSimpleMsgCleanup (void , void obj)

Constructor & Destructor Documentation

◆ FairMQTransportFactory()

FairMQTransportFactory::FairMQTransportFactory ( const std::string & id )

ctor

Parameters

id	Topology wide unique id, usually the device id.

Member Function Documentation

◆ CreateMessage() [1/6]

virtual FairMQMessagePtr FairMQTransportFactory::CreateMessage ( )

pure virtual

Create empty FairMQMessage (for receiving)

Returns: pointer to FairMQMessage

Implemented in fair::mq::shmem::TransportFactory, fair::mq::zmq::TransportFactory, and fair::mq::ofi::TransportFactory.

◆ CreateMessage() [2/6]

virtual FairMQMessagePtr FairMQTransportFactory::CreateMessage ( const size_t size )

pure virtual

Create new FairMQMessage of specified size.

Parameters

size	message size

Returns: pointer to FairMQMessage

Implemented in fair::mq::shmem::TransportFactory, and fair::mq::zmq::TransportFactory.

◆ CreateMessage() [3/6]

virtual FairMQMessagePtr FairMQTransportFactory::CreateMessage	(	const size_t	size,
		fair::mq::Alignment	alignment
	)

pure virtual

Create new FairMQMessage of specified size and alignment.

Parameters

size	message size
alignment	message alignment

Returns: pointer to FairMQMessage

Implemented in fair::mq::shmem::TransportFactory, and fair::mq::zmq::TransportFactory.

◆ CreateMessage() [4/6]

virtual FairMQMessagePtr FairMQTransportFactory::CreateMessage ( fair::mq::Alignment alignment )

pure virtual

Create empty FairMQMessage (for receiving), align received buffer to specified alignment.

Parameters

alignment alignment to align received buffer to

Returns: pointer to FairMQMessage

Implemented in fair::mq::shmem::TransportFactory, fair::mq::zmq::TransportFactory, and fair::mq::ofi::TransportFactory.

◆ CreateMessage() [5/6]

virtual FairMQMessagePtr FairMQTransportFactory::CreateMessage	(	FairMQUnmanagedRegionPtr &	unmanagedRegion,
		void *	data,
		const size_t	size,
		void *	hint = `0`
	)

pure virtual

create a message with the buffer located within the corresponding unmanaged region

Parameters

unmanagedRegion	the unmanaged region that this message buffer belongs to
data	message buffer (must be within the region - checked at runtime by the transport)
size	size of the message
hint	optional parameter, returned to the user in the FairMQRegionCallback

Implemented in fair::mq::shmem::TransportFactory, and fair::mq::zmq::TransportFactory.

◆ CreateMessage() [6/6]

virtual FairMQMessagePtr FairMQTransportFactory::CreateMessage	(	void *	data,
		const size_t	size,
		fairmq_free_fn *	ffn,
		void *	hint = `nullptr`
	)

pure virtual

Create new FairMQMessage with user provided buffer and size.

Parameters

data	pointer to user provided buffer
size	size of the user provided buffer
ffn	callback, called when the message is transfered (and can be deleted)
obj	optional helper pointer that can be used in the callback

Returns: pointer to FairMQMessage

Implemented in fair::mq::shmem::TransportFactory, and fair::mq::zmq::TransportFactory.

◆ CreateUnmanagedRegion() [1/2]

virtual FairMQUnmanagedRegionPtr FairMQTransportFactory::CreateUnmanagedRegion	(	const size_t	size,
		const int64_t	userFlags,
		FairMQRegionCallback	callback = `nullptr`,
		const std::string &	path = `""`,
		int	flags = `0`
	)

pure virtual

Create new UnmanagedRegion.

Parameters

size	size of the region
userFlags	flags to be stored with the region, have no effect on the transport, but can be retrieved from the region by the user
callback	callback to be called when a message belonging to this region is no longer needed by the transport
path	optional parameter to pass to the underlying transport
flags	optional parameter to pass to the underlying transport

Returns: pointer to UnmanagedRegion

Implemented in fair::mq::shmem::TransportFactory, fair::mq::ofi::TransportFactory, and fair::mq::zmq::TransportFactory.

◆ CreateUnmanagedRegion() [2/2]

virtual FairMQUnmanagedRegionPtr FairMQTransportFactory::CreateUnmanagedRegion	(	const size_t	size,
		FairMQRegionCallback	callback = `nullptr`,
		const std::string &	path = `""`,
		int	flags = `0`
	)

pure virtual

Create new UnmanagedRegion.

Parameters

size	size of the region
callback	callback to be called when a message belonging to this region is no longer needed by the transport
path	optional parameter to pass to the underlying transport
flags	optional parameter to pass to the underlying transport

Returns: pointer to UnmanagedRegion

Implemented in fair::mq::shmem::TransportFactory, fair::mq::ofi::TransportFactory, and fair::mq::zmq::TransportFactory.

◆ SubscribedToRegionEvents()

virtual bool FairMQTransportFactory::SubscribedToRegionEvents ( )

pure virtual

Check if there is an active subscription to region events.

Returns: true/false

Implemented in fair::mq::shmem::TransportFactory, fair::mq::zmq::TransportFactory, and fair::mq::ofi::TransportFactory.

◆ SubscribeToRegionEvents()

virtual void FairMQTransportFactory::SubscribeToRegionEvents ( FairMQRegionEventCallback callback )

pure virtual

Subscribe to region events (creation, destruction, ...)

Parameters

callback the callback that is called when a region event occurs

Implemented in fair::mq::ofi::TransportFactory, fair::mq::shmem::TransportFactory, and fair::mq::zmq::TransportFactory.

The documentation for this class was generated from the following files:

fairmq/FairMQTransportFactory.h
fairmq/FairMQTransportFactory.cxx
